Description
Designed for easier IFR flight planning and in-flight reference.

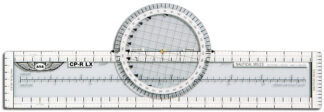

ASA’s instrument plotter includes all current IFR chart scales, and features:
- 12 scales to accommodate both NACO and Jeppesen instrument charts (see velow)
- Conversion scale for nautical and statute miles
- Holding patterns depicted for both standard and nonstandard entries
- Compass roses allow quick course and bearing information
- Professional layout enabling easy reading during enroute spot checks
- Made of durable resin so plotter won’t warp or break in extreme temperatures
Scales included on Standard side:
1=5
1=8
1=10
1=12
1=15
1=23
NM to SM
Scales included on Nonstandard side:
1=7
1=7.5
1=14
1=16
1=20
1=31
NM to SM
